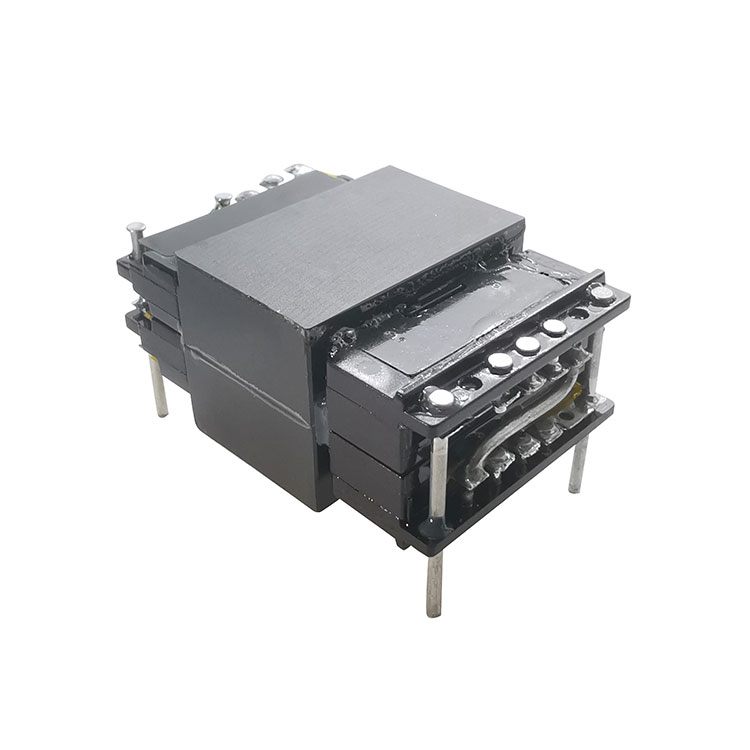

EV įkrovimo transformatorius

OCL:

1-7 kaištis = 1,45 mH min. @100KHz/1V

LK:

1-7 kontaktas (trumpas 8-11,11-14) = 10,5 uH maks. 100 kHz 1 V

1-7 kontaktas (trumpas 8-14) = 7,2 uH maks. 100 kHz 1 V

Posūkio santykis:

28:6:6 ±3%. @20KHz/1.0V

DCR:

1-7: 68mΩ Maks.

8-14: 8mΩ Maks.

Hi-POT:

N1-N2: 3750V AC/3mA/60S.

N1-ŠERDIS: 3750V AC/3mA/60S.

N2/N3--ŠERDIS: 500V AC/3mA/60S.

IR:

N1-N2: 100MΩ Min. DC500V

RITĖS ŠERDIS: 100MΩ Min. DC500V
